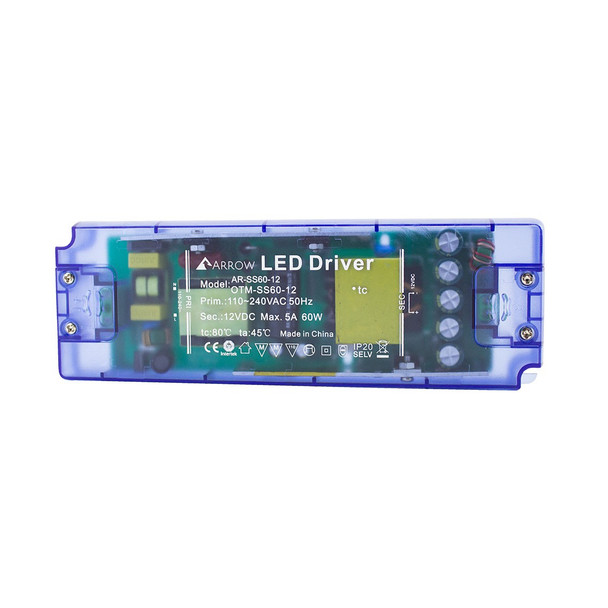

LED5012 Non Dimmable Driver 60w Constant Voltage

LED5012(ARSS6012

(No reviews yet) Write a Review

Estimating Shipping

RRP: £25.98
Now: £21.00
Was: £25.98
— You save £4.98
Frequently bought together:

Description

60W LED Driver with DC Voltage Output

This high-performance LED driver is designed for reliable and efficient power delivery, suitable for a range of LED lighting applications. With a rated power of 60W, it operates at a DC voltage of 12V and a current range of 0~5A, ensuring consistent and stable performance.

Key Features:

  • Voltage & Current: DC 12V output with a rated current of 5A, ideal for powering LED systems.
  • Efficiency & Power Factor: High efficiency at 85% and a power factor of >0.95 for energy savings.
  • Input Range: Wide voltage range of 110~240VAC and frequency of 47-63Hz for versatile compatibility.
  • Safety & Protection:
    • Short circuit protection with automatic recovery.
    • Overload protection (100-120%).
    • Safety standards compliant: EN61347-1, EN61347-2-13, SELV.
  • Temperature Tolerance: Operates in extreme temperatures from -40°C to +70°C and stores between -40°C to +80°C.
  • Noise Control: Ripple and noise levels below <150mV ensure stable operation.
  • IP Rating: IP20 rating for indoor use in controlled environments.

Compact, efficient, and safe, this driver is the ideal solution for powering LED applications in residential, commercial, or industrial settings.

DC Voltage:
12V
Rated Current:
5A
Current Range:
0~5A
Rated Power:
60w
Ripple and Noise:
<150mV
Voltage Tolerance:
+0.5V
Voltage Range:
110~240VAC
Frequency Range:
47-63Hz
Power Factor:
>0.95
Efficiency:
85%
AC Current:
0.33A/220VAC
Short Circuit:
Protection Type: Hiccpe mode, recovers automatically after condition is removed
Overload:
100-120%
Working Temperature:
-40~+70°C
Storage Temperature:
-40~+80°C
Safety Standards:
EN61347-1;EN61347-2-13;SELV
IP Rating:
IP20
