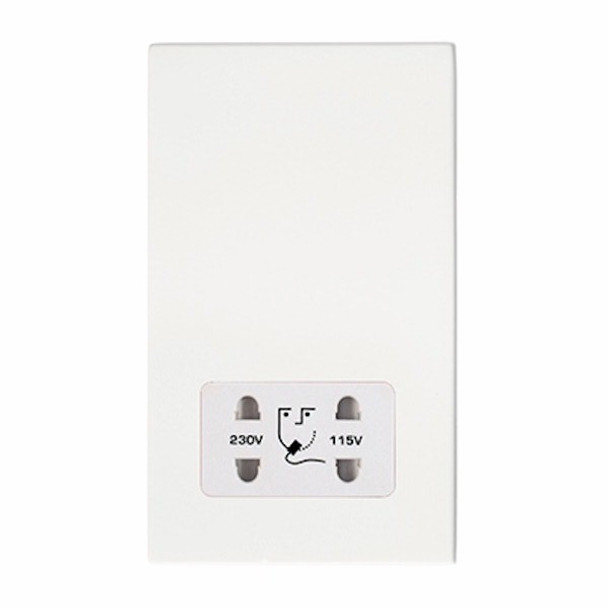

Hartland CFX Primed White Shaver Dual Voltage Unswitched Socket (Vertically Mounted) White

Family Code:

S HART CFX

Product Code:

S HT-C PRW

Plate Size:

Double

Minimum Wall Box Depth:

47mm

Insert Colour:

White

Plate Material:

Metal

Plate Finish:

Primed White

Technical Insert Description:

Shaver Dual Voltage Unswitched Socket (Vertically Mounted)

Current Rating (A):

20v

CE Marked:

Yes

Max Load:

200/250V input; 115/230V 20VA output

Voltage (V):

220-240

Switched Poles:

None

Contact Gap Minimum (mm):

None

Terminal Capacity 1 (mm²):

5x1

Terminal Capacity 2 (mm²):

4x1.5

Terminal Capacity 3 (mm²):

3x2.5

Terminal Capacity 4 (mm²):

2x4 Multi-strand

Terminal Capacity 5 (mm²):

1x6

Earth Terminal Capacity 1 (mm²):

9x1

Earth Terminal Capacity 2 (mm²):

6x1.5

Earth Terminal Capacity 3 (mm²):

4x2.5

Earth Terminal Capacity 4 (mm²):

2x4 Multi-strand

Earth Terminal Capacity 5 (mm²):

1x6

Product Class 1:

Must be earthed

Ambient Operating Temperature:

-5° to +40°C

Recommended Location:

Internal Use Only

Max Installation Altitude:

2000m

BS EN ISO Standard:

BS EN 61558-2-5 + BS 4573

Range:

Hartland CFX

Patents:

CFX is a Registered Trade Mark No 2398667Hartland CFX is a Registered Design under Reference Nos.R21 = 3023446 SS2 =3023445

IP Rating:

IP2XD

Mains Frequency:

50Hz
