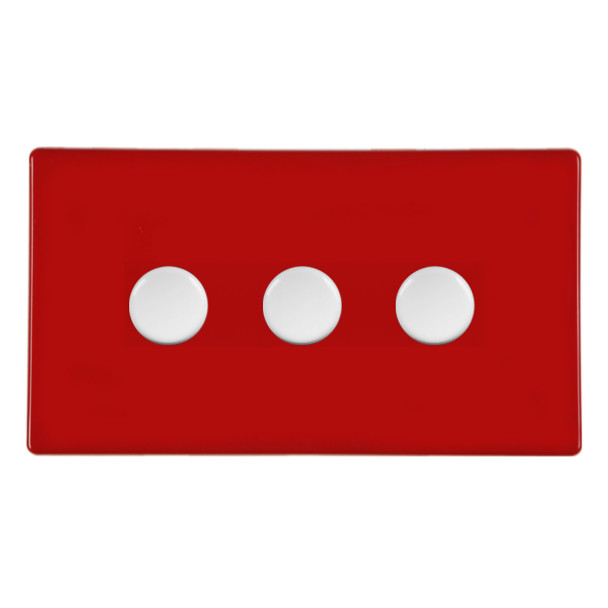

Hartland CFX Pillar Box Red 3-Gang 250W/210VA LED Dimmer White Inserts

Family Code:

S H CFX CL

Product Code:

S HCOL 7RC

Plate Size:

Double

Minimum Wall Box Depth:

35mm

Insert Colour:

White

Plate Material:

Plastic

Plate Finish:

Pillar Box Red

Technical Insert Description:

3 gang 250W/210VA Resistive/Inductive Trailing Edge Push On/Off Rotary Multi-Way Dimmer

Current Rating (A):

1.1 per gang

CE Marked:

Yes

Wattage (W):

250 resistive 210va inductive

Max Load:

250W Resistive per gang 210VA Inductive Min Load 25W/25VA

Voltage (V):

220-240

Switched Poles:

Single

Contact Gap Minimum (mm):

None

Terminal Capacity 1 (mm²):

2x1

Terminal Capacity 2 (mm²):

2x1.5

Earth Terminal Capacity 1 (mm²):

5x1

Earth Terminal Capacity 2 (mm²):

4x1.5

Earth Terminal Capacity 3 (mm²):

3x2.5

Earth Terminal Capacity 4 (mm²):

1x4 Multi-strand

Earth Terminal Capacity 5 (mm²):

1x6

Product Class 1:

Face plate must be earthed

Ambient Operating Temperature:

-5° to +40°C

Recommended Location:

Internal Use Only

Max Installation Altitude:

2000m

BS EN ISO Standard:

BS EN 60669-2-1

Range:

Hartland CFX Colours

Patents:

CFX is a Registered Trade Mark No 2398667

IP Rating:

IP2XD

Mains Frequency:

50Hz
