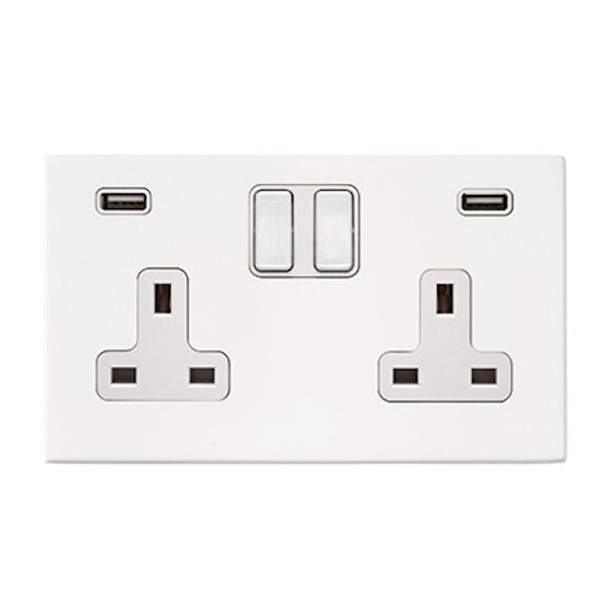

Hartland CFX Gloss White 2 gang 13A Double Pole Switched Socket with 2 USB Ultra Outlets 2x2.4A White/White

Family Code:

S HART CFX

Product Code:

S HT-C WH

Plate Size:

Double

Minimum Wall Box Depth:

35mm

Insert Colour:

White/White

Plate Material:

Metal

Plate Finish:

Gloss White

Technical Insert Description:

2 gang 13A Double Pole Switched Socket with 2 USB Outlets 2x2.4A (4.8A Total)

Current Rating (A):

13 , usb 2 x 2.4

Max Load:

13 Amp, USB = 2.4A X 2

Voltage (V):

180/250 USB = 5

Switched Poles:

Double

Contact Gap Minimum (mm):

3

Terminal Capacity 1 (mm²):

3x2.5

Terminal Capacity 2 (mm²):

3x4

Terminal Capacity 3 (mm²):

2x6 Multi-strand

Earth Terminal Capacity 1 (mm²):

3x2.5

Earth Terminal Capacity 2 (mm²):

3x4

Earth Terminal Capacity 3 (mm²):

2x6 Multi-strand

Product Class 1:

Must be earthed

Ambient Operating Temperature:

-15°C to +40°C

Recommended Location:

Internal Use Only

Max Installation Altitude:

2000m

BS EN ISO Standard:

BS 1363 + BS 5733 + BS EN 62368-1

Range:

Hartland CFX

Patents:

CFX is a Registered Trade Mark No 2398667Hartland CFX is a Registered Design under Reference Nos.R21 = 3023446 SS2 =3023445

IP Rating:

IP2XD

Mains Frequency:

50/60Hz
