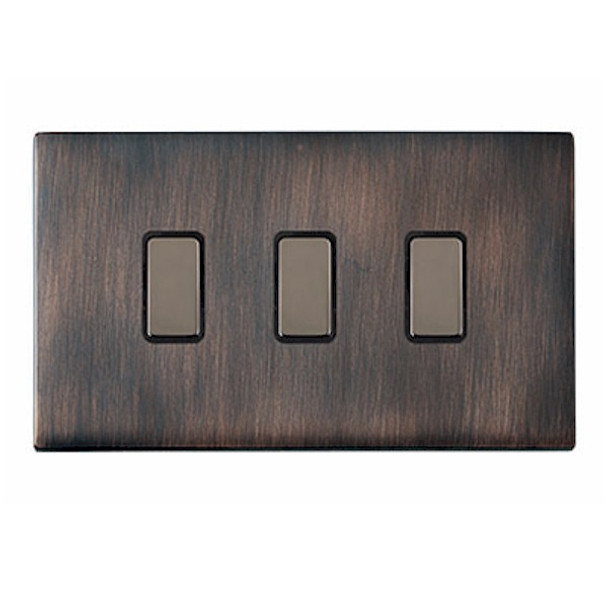

Hartland CFX Etrium Bronze 3x250W/210VA Resistive/Inductive Trailing Edge Touch Master Multi-Way Dimmers Black Nickel/Black

Family Code:

S HART CFX

Product Code:

S HT-C EB

Plate Size:

Double

Minimum Wall Box Depth:

35mm

Insert Colour:

Black Nickel/Black

Plate Material:

Metal

Plate Finish:

Etrium Bronze

Technical Insert Description:

3 gang 250W/210VA Resistive/Inductive Trailing Edge Touch Master Multi-Way Dimmer

Current Rating (A):

1.1 per gang

Wattage (W):

250 resistive 210va inductive

Max Load:

250W Resistive per gang 210VA Inductive Min Load 25W/25VA

Voltage (V):

220-240

Terminal Capacity 1 (mm²):

2x1

Terminal Capacity 2 (mm²):

2x1.5

Earth Terminal Capacity 1 (mm²):

5x1

Earth Terminal Capacity 2 (mm²):

4x1.5

Earth Terminal Capacity 3 (mm²):

3x2.5

Earth Terminal Capacity 4 (mm²):

1x4 Multi-strand

Earth Terminal Capacity 5 (mm²):

1x6

Product Class 1:

Face plate must be earthed

Ambient Operating Temperature:

-5° to +40°C

Recommended Location:

Internal Use Only

Max Installation Altitude:

2000m

BS EN ISO Standard:

BS EN 60669-2-1

Range:

Hartland CFX

Patents:

CFX is a Registered Trade Mark No 2398667Hartland CFX is a Registered Design under Reference Nos.R21 = 3023446 SS2 =3023445

IP Rating:

IP2XD

Mains Frequency:

50Hz
