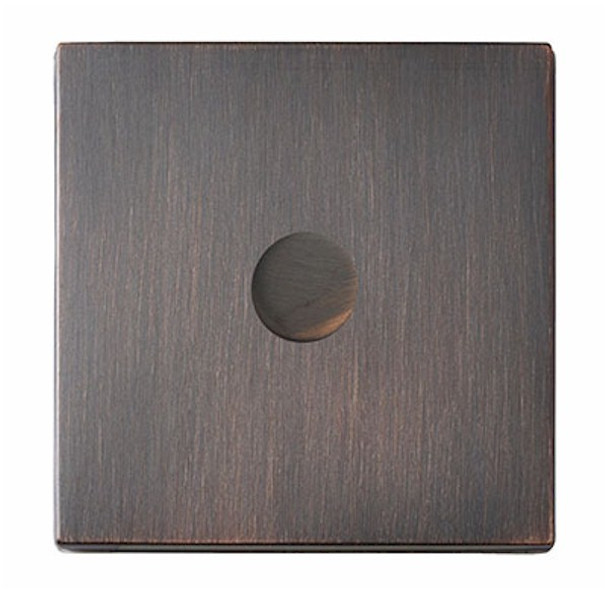

Hartland CFX Etrium Bronze 1 gang 600W Resistive Leading Edge Push On-Off Rotary 2 Way Switching Dimmer Etrium Bronze

Family Code:

S HART CFX

Product Code:

S HT-C EB

Plate Size:

Single

Minimum Wall Box Depth:

35mm

Insert Colour:

Etrium Bronze

Plate Material:

Metal

Plate Finish:

Etrium Bronze

Technical Insert Description:

1 gang 600W Resistive Leading Edge Push On/Off Rotary 2 Way Switching Dimmer

Current Rating (A):

2.5

CE Marked:

Yes

Wattage (W):

600

Max Load:

600W resistive Min Load 100W

Voltage (V):

220-240

Switched Poles:

Single

Terminal Capacity 1 (mm²):

2x1

Terminal Capacity 2 (mm²):

2x1.5

Earth Terminal Capacity 1 (mm²):

5x1

Earth Terminal Capacity 2 (mm²):

4x1.5

Earth Terminal Capacity 3 (mm²):

3x2.5

Earth Terminal Capacity 4 (mm²):

1x4 Multi-strand

Earth Terminal Capacity 5 (mm²):

1x6

Product Class 1:

Face plate must be earthed

Ambient Operating Temperature:

-5° to +40°C

Recommended Location:

Internal Use Only

Max Installation Altitude:

2000m

BS EN ISO Standard:

BS EN 60669-2-1

Range:

Hartland CFX

Patents:

CFX is a Registered Trade Mark No 2398667Hartland CFX is a Registered Design under Reference Nos.R21 = 3023446 SS2 =3023445

IP Rating:

IP2XD

Mains Frequency:

50Hz
