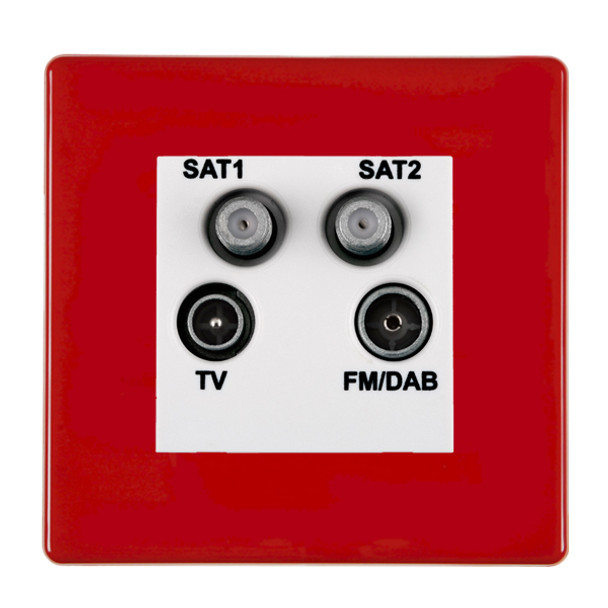

Hartland CFX Colours Pillar Box Red Non-Isolated TV+FM+SAT1+SAT2 Quadplexer 2in/4out (DAB Compatible) White

Family Code:

S H CFX CL

Product Code:

S HCOL 7RC

Plate Size:

Single

Minimum Wall Box Depth:

35mm

Insert Colour:

White

Plate Material:

Plastic

Plate Finish:

Pillar Box Red

Technical Insert Description:

Non-Isolated TV+FM+SAT1+SAT2 Quadplexer 2in/4out (DAB Compatible)

Earth Terminal Capacity 1 (mm²):

5x1

Earth Terminal Capacity 2 (mm²):

4x1.5

Earth Terminal Capacity 3 (mm²):

3x2.5

Earth Terminal Capacity 4 (mm²):

1x4 Multi-strand

Earth Terminal Capacity 5 (mm²):

1x6

Product Class 1:

Must be earthed (ref BS7671 415.2.1)

Ambient Operating Temperature:

-5° to +40°C

Recommended Location:

Internal Use Only

Max Installation Altitude:

2000m

BS EN ISO Standard:

BS EN 50581:2012, BS EN 60728-4:2008, BS EN 50083-2: 2012/A1:2015

Euro Fix Additional Notes:

Quadplexer for use with combined TV FM and Satellite Signals (DAB compatible)

Frequencies 1:

TV=5-68 MHz 125-860 MHz

Frequencies 2:

FM=88-108 MHz

Frequencies 3:

SAT DC=950-2200 MHz

Range:

Hartland CFX Colours

Patents:

CFX is a Registered Trade Mark No 2398667

IP Rating:

IP2XD
