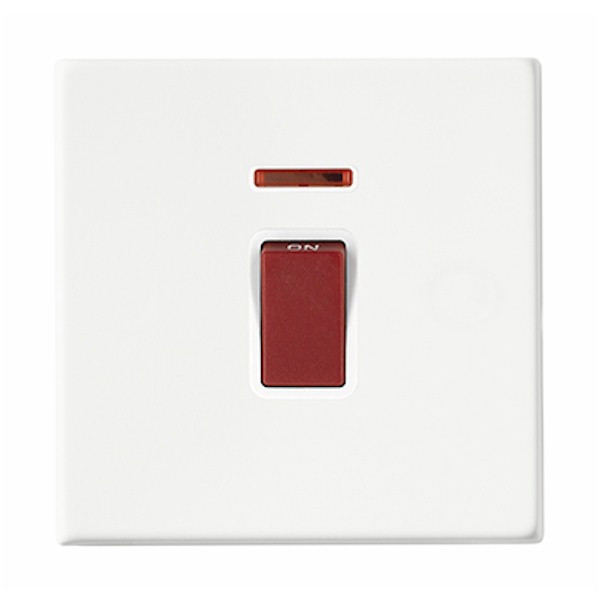

Hartland CFX Colours Bright White 1 gang 45A Double Pole Rocker and Neon Red/White

Family Code:

S H CFX CL

Product Code:

S HCOL 7WC

Plate Size:

Single

Minimum Wall Box Depth:

35mm

Insert Colour:

Red/White

Plate Material:

Plastic

Plate Finish:

Bright White

Technical Insert Description:

1 gang 45A Double Pole Red Rocker + Neon

Current Rating (A):

45

CE Marked:

Yes

Max Load:

45 Amp

Voltage (V):

220-240

Switched Poles:

Double

Contact Gap Minimum (mm):

3

Terminal Capacity 1 (mm²):

3x6

Terminal Capacity 2 (mm²):

2x10

Terminal Capacity 3 (mm²):

1x16

Earth Terminal Capacity 1 (mm²):

3x6

Earth Terminal Capacity 2 (mm²):

2x10

Earth Terminal Capacity 3 (mm²):

1x16

Product Class 1:

Must be earthed

Ambient Operating Temperature:

-5° to +40°C

Recommended Location:

Internal Use Only

Max Installation Altitude:

2000m

BS EN ISO Standard:

BS EN 60669-1

Range:

Hartland CFX Colours

Patents:

CFX is a Registered Trade Mark No 2398667

IP Rating:

IP2XD

Mains Frequency:

50Hz
