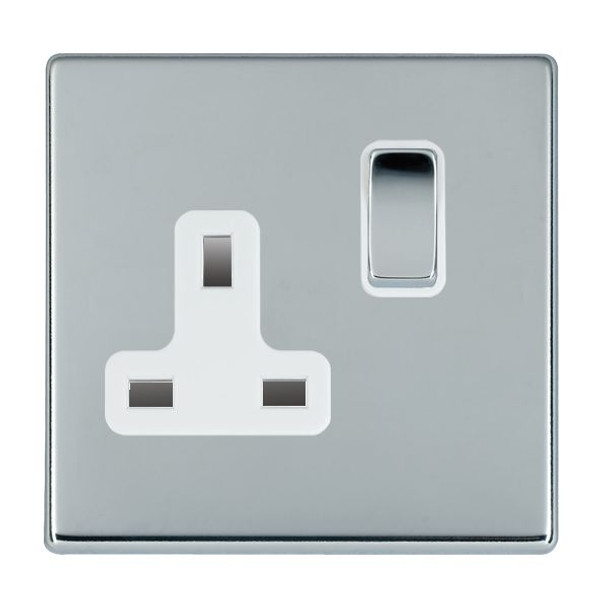

Hartland CFX Bright Chrome 1G 13A DP Switched Socket White Insert

Family Code:

S HART CFX

Product Code:

S HT-C BC

Plate Size:

Single

Minimum Wall Box Depth:

35mm

Insert Colour:

Bright Chrome/White

Plate Material:

Metal

Plate Finish:

Bright Chrome

Technical Insert Description:

1 gang 13A Double Pole Switched Socket

Current Rating (A):

13

Max Load:

13 Amp

Voltage (V):

220-240

Switched Poles:

Double

Contact Gap Minimum (mm):

3

Terminal Capacity 1 (mm²):

4x2.5

Terminal Capacity 2 (mm²):

3x4

Terminal Capacity 3 (mm²):

2x6 Multi-strand

Terminal Capacity 4 (mm²):

1x10

Earth Terminal Capacity 1 (mm²):

4x2.5

Earth Terminal Capacity 2 (mm²):

3x4

Earth Terminal Capacity 3 (mm²):

2x6 Multi-strand

Earth Terminal Capacity 4 (mm²):

1x10

Product Class 1:

Must be earthed

Ambient Operating Temperature:

-5° to +40°C

Recommended Location:

Internal Use Only

Max Installation Altitude:

2000m

BS EN ISO Standard:

BS 1363-2

Range:

Hartland CFX

Patents:

CFX is a Registered Trade Mark No 2398667Hartland CFX is a Registered Design under Reference Nos.R21 = 3023446 SS2 =3023445

IP Rating:

IP2XD

Mains Frequency:

50Hz
